Multi-stage deformation process in high-entropy alloys at ultra-low temperatures revealed



An international research team led by scientists from City University of Hong Kong (CityU) has recently discovered that high-entropy alloys (HEAs) exhibit exceptional mechanical properties at ultra-low temperatures due to the coexistence of multiple deformation mechanisms. Their discovery may hold the key to design new structural materials for applications at low temperatures.

Professor Wang Xunli, a newly elected Fellow of the Neutron Scattering Society of America, Chair Professor and Head of Department of Physics at CityU, joined hands with scientists from Japan and mainland China in conducting this challenging study on HEAs’ deformation behaviours at ultra-low temperatures. Their research findings were published in the latest issue of the scientific journal Science Advances, titled “Cooperative deformation in high-entropy alloys at ultralow temperatures”.

Neutron scattering: a powerful measurement tool

HEAs are a new class of structural materials with different favorable mechanical properties, such as excellent strength–ductility combination, high fracture toughness, and resistance against corrosion. It consists of multiple principal elements, contributing to complex deformation behaviours.

Usually, materials would become brittle at low temperatures because the atoms are “frozen” and lose their mobility. But HEAs demonstrate high ductility and they can be stretched to a large deformation at low temperatures. “This phenomenon was first discovered in 2014, but the mechanism behind is still unknown. It’s intriguing,” said Professor Wang who has been studying the mechanism since then and is the corresponding author of the paper.

To solve this puzzle, the research team led by Professor Wang made use of the in-situ neutron diffraction (a type of neutron scattering) technique to study the deformation process of HEAs. “Neutron diffraction measurement is one of the only few means to observe what’s going on during the materials’ deformation. We can see every step: which mechanism kicks in first and how each of them interacts with the others, which is not feasible by conventional experimental methods like the transmission electron microscopy,” Professor Wang explained, who is also the director of CityU Center on Neutron Scattering.

“More importantly, it can conduct measurements at ultra-low temperatures, i.e. near absolute zero. And the measurements are representative of the bulk of the sample rather than from the surface or localized area, providing microscopic information like how different grains of the materials interacted with each other,” he added.

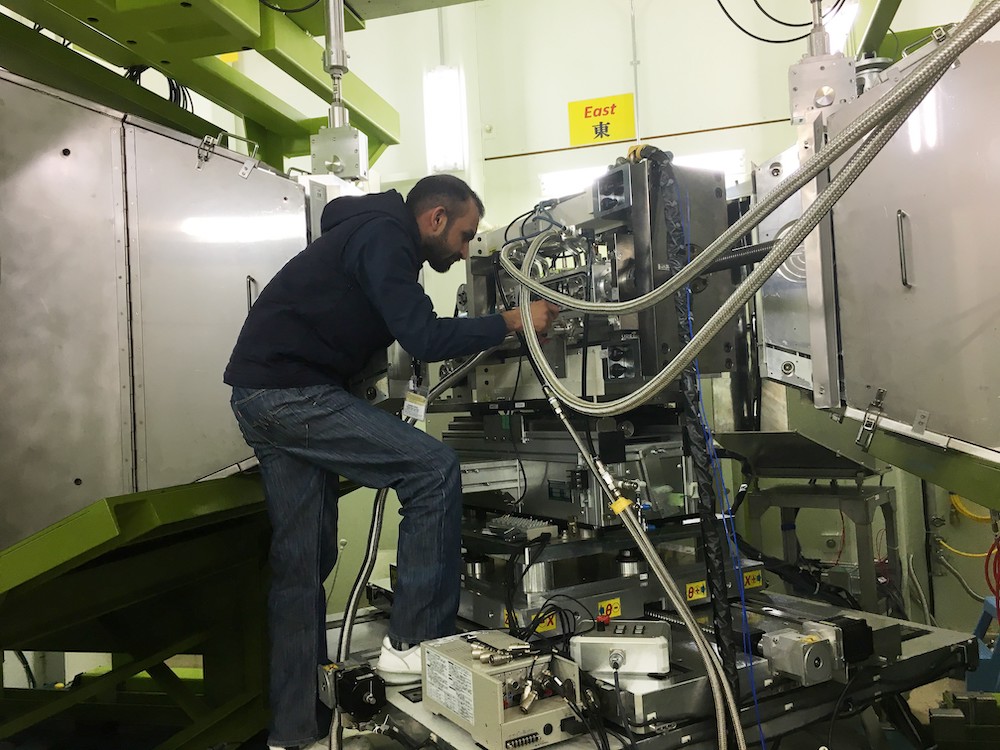

Muhammad Naeem prepares the experiment at J-PARC
Muhammad Naeem prepares the experiment at TAKUMI, an engineering materials diffractometer at Japan Proton Accelerator Research Complex (J-PARC) used to perform in-situ neutron diffraction measurements multiple HEA samples, which all showed a multi-stage deformation process. (© Professor Wang Xunli / City University of Hong Kong)



Sequence of deformation mechanisms revealed

Using this technique, the sequence of deformation mechanisms in HEAs at ultra-low temperatures are revealed for the first time. The team found out that at 15 Kelvin (K), the HEA deforms in four stages.

Deformation pathway of HEA sample at 15 K
Deformation pathway of CrMnFeCoNi HEA sample at 15 K. Vertical dashed lines are drawn to pinpoint the changes in the deformation behaviour: (1) Start of dislocation slip; (2) start of stacking faults; (3) first sign of serrations; and (4) massive serrations coincided with the saturation of dislocation slip. (Photo source: DOI number: 10.1126/sciadv.aax4002)



It begins with the dislocation slip, a common deformation mechanism for face-centered-cubic materials, where the planes of crystal lattice slide over each other. While the dislocations continue, stacking faults gradually become active and dominant, where the stacking sequence of crystal lattice planes are changed by the deformation. It is then followed by twinning, where the misorientation of lattice planes occurs, resulting in a mirror image of parent crystal. Finally, it transits to serrations where the HEA shows big oscillations of deforming stress.

“It is interesting to see how these mechanisms become active and cooperate with each other when the material deforms,” said Mr Muhammad Naeem, a graduating PhD student and Senior Research Assistant from CityU’s Department of Physics who is the first author of the paper.

In their experiments, they found that the HEAs showed a higher and more stable strain hardening (strain hardening means materials become stronger and harder after deformation), and the exceedingly large ductility as the temperature decreased. Based on the quantitative analysis of their in-situ experimental data, they concluded that the three observed additional deformation mechanisms – stacking faults, twinning, and serrations – as well as the interaction among these mechanisms, are the source of those extraordinary mechanical properties.

A new terrain: deformations at ultra-low temperatures

The whole study took the team almost three years. But there is a lot for further exploration. “Complicated deformation mechanisms in HEAs at ultra-low temperatures is a new terrain that very few people have ventured before. The findings of this study only show the tip of an iceberg,” said Professor Wang.

For their next step, the team will further investigate when stacking faults will appear in other alloys and their deformation mechanisms at different temperatures. “Understanding deformation mechanisms will facilitate the design of new alloys. By deploying different mechanisms in synergy, we can tune them to achieve better mechanical properties for applications at low temperatures,” said Mr Naeem.

The CityU research team members included Professor Liu Chain-tsuan, University Distinguished Professor and Dr Wang Feng, Associate Professor of Department of Materials Science and Engineering at CityU, as well as Dr Wang Bing, Dr Lan Si, Dr Wu Zhenduo, and He Haiyan from Department of Physics. Other co-authors included Professor Lu Zhaoping, Professor Wu Yuan from the University of Science and Technology Beijing, Dr Stefanus Harjo and Dr Takuro Kawasaki from Japan’s J-PARC Center, as well as Professor Zhang Zhongwu of Harbin Engineering University.

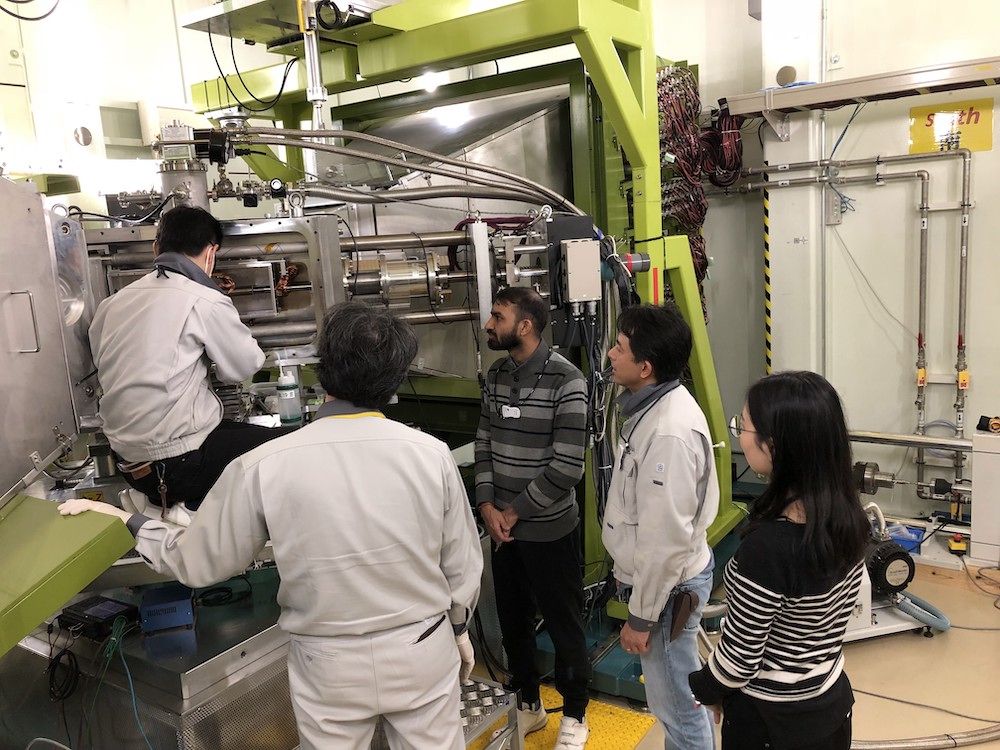

CityU researchers discuss the experiment strategy with Japanese collaborators
CityU students Muhammad Naeem (centre) and He Haiyan (right) discuss the experiment strategy with Japanese collaborators. (© Professor Wang Xunli / City University of Hong Kong)



The study was supported by the Croucher Foundation, the Research Grants Council of Hong Kong SAR, the National Natural Science Foundation of China, the Shenzhen Science and Technology Innovation Committee, and the Ministry of Science and Technology of China.

DOI number: 10.1126/sciadv.aax4002
